Toyota FCHV (2008)

During development, TMC analyzed results and data from various utilization studies by the Japan Hydrogen & Fuel Cell Demonstration Project organized by Japan's Ministry of Economy, Trade and Industry, tests conducted by the California Fuel Cell Partnership in the United States and cold-weather tests in Timmins, Canada. TMC also repeatedly carried out basic research to get to the core of technical problems as they arose. Based on the results gained from these studies, the TOYOTA FCHV-adv's fuel cell system was enhanced to further improve cruising distance and low-temperature starts, which had presented obstacles to widespread fuel cell vehicle use.

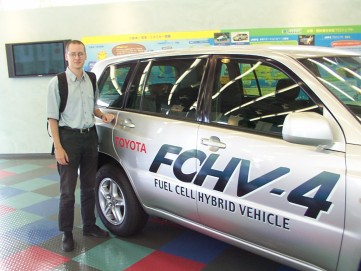

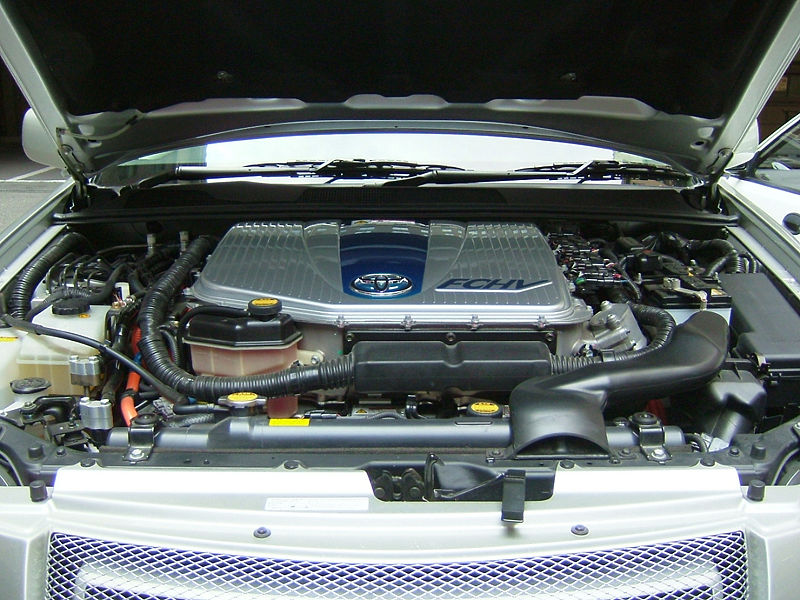

Toyota FCHV

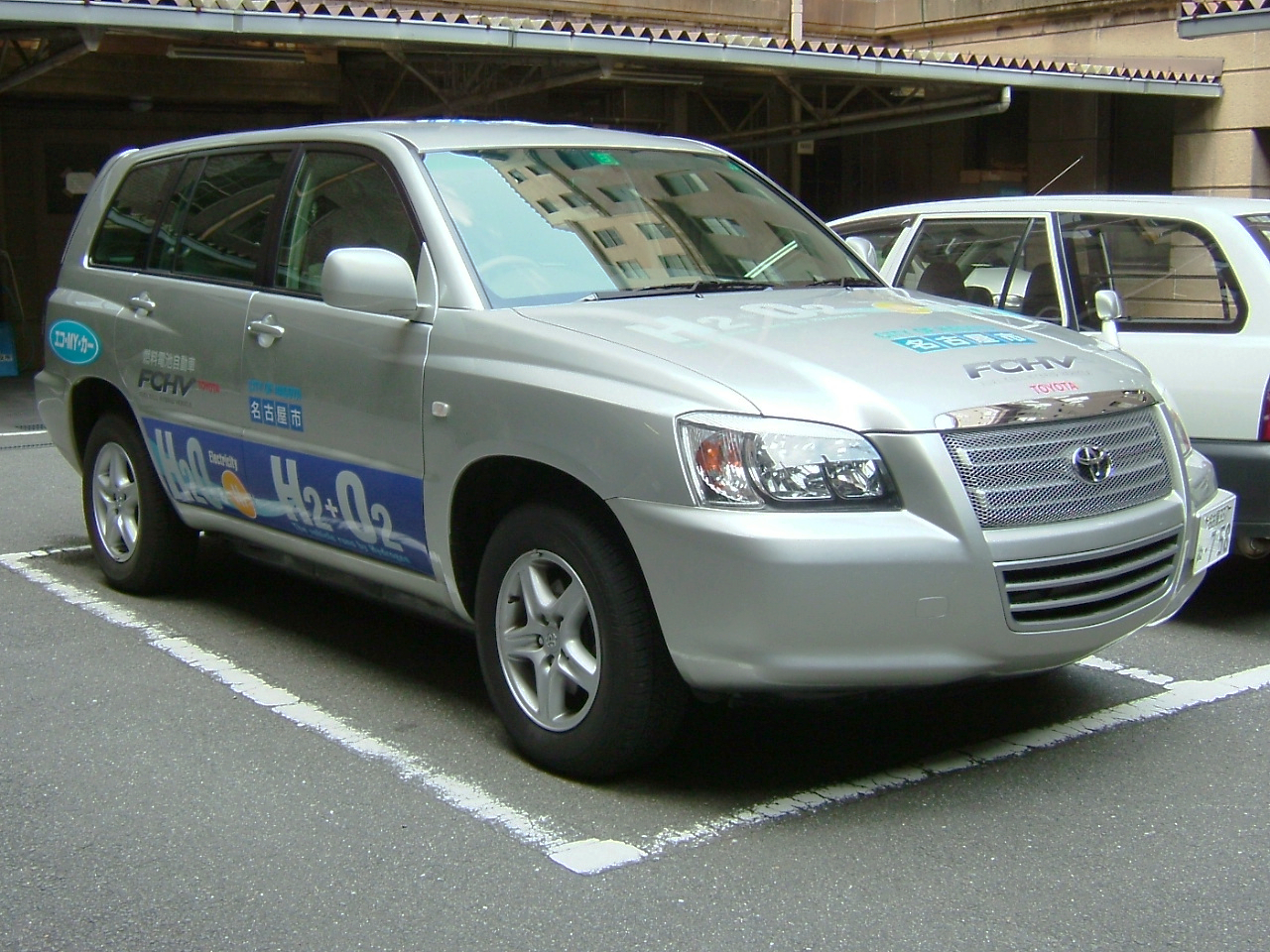

Toyota FCHV
Engine/Motor Permanent magnet
Power output 90 kw
Torque 260 Nm
0-100 km 10.9 sec
Top speed 155 km/h
Range 660 km

The Tiguan HyMotion concept features a fuel cell system integrated in the engine compartment capable of 107 horsepower. With an assist from the electric motor, the Tiguan HyMotion advances to 134 horsepower. The top speed of the Tiguan HyMotion is 93 mph and it accelerates from 0 to 60 mph in about 14 seconds.
A lithium ion battery with a charge capacity of 6.8 Ampere-hours (Ah) serves as an auxiliary energy storage device with a maximum power output of 22 kW. The battery is charged by recovered braking energy (recuperation) or by the fuel cell. This increased functionality and efficiency does not impair the interior space of the vehicle. The battery system is installed in the trunk beneath the dual cargo floor available on the production Tiguan. The 700 bar hydrogen tank was integrated in the area beneath the floor in the rear bench seat and cargo area. It can hold up to 3.2 kilograms of hydrogen (H2).

Tiguan HyMotion

Tiguan HyMotion

The building block of the Toyota FC Stack is the Membrane Electrode Assembly (MEA), where engineers focused on the basic problem of internally produced water interfering with electrical generation within the MEA at low temperatures. Fundamental research, such as internal visualization tests, was carried out to understand the behavior and amount of water generated in the fuel cell, allowing engineers to optimize the MEA design to improve low-temperature startup. As a result, the TOYOTA FCHV-adv can start and operate in cold regions at temperatures as low as -30 degrees Celsius, meaning the vehicle can be used in a wider variety of conditions and climates.
In addition, fuel efficiency was improved by 25% through improving fuel cell unit performance, enhancing the regenerative brake system and reducing energy consumed by the auxiliary system. Further changes include incorporating degradation control for the electrode catalyst and improving fuel cell durability. Furthermore, equipping the vehicle with TMC-developed 70Mpa high-pressure hydrogen tanks makes it possible to travel approximately 830km*2 on a single fueling—performance that more than doubles that of the TOYOTA FCHV-adv's predecessor, the TOYOTA FCHV.
While steadily conducting research and development to resolve issues such as how to improve the durability and reduce costs of the Toyota FC Stack, TMC is working with government, energy companies and other concerned parties to actively bring about widespread fuel cell vehicle use.
A Toyota FCHV-adv is to be provided as a test-ride vehicle at the Environmental Showcase within the International Media Center during the July 7-9 Hokkaido Toyako Summit.

Overall length/width/height (mm) 4,735/1,815/1,685 4,735/1,815/1,685
Weight (kg) 1,880 1,880
Seating capacity 5 5
Maximum cruising range (km)*
10-15 test cycle/JC08 test cycle
Approx. 830/Approx. 760 Approx. 330/ -
Maximum speed (km/h) 155 155
Fuel cell Name Toyota FC Stack Toyota FC Stack
Type Polymer electrolyte Polymer electrolyte
Output (kW) 90 90
Motor Type Permanent magnet Permanent magnet
Maximum output
in kW (ps)
90 (122) 90 (122)
Maximum torque
in N-m (kg-m)
260 (26.5) 260 (26.5)
Fuel Hydrogen Hydrogen
Storage system High-pressure storage tanks High-pressure storage tanks
Maximum storage pressure (MPa) 70 35
Tank capacity (L) 156 148
Battery Nickel-metal hydride Nickel-metal hydride
